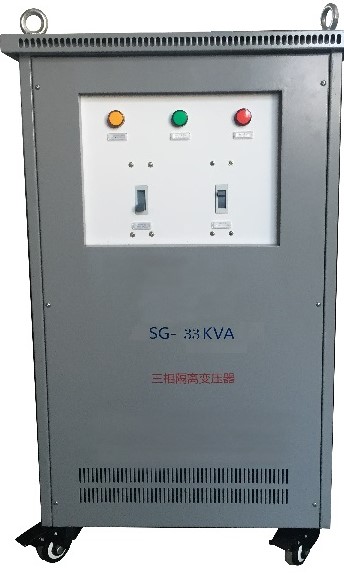

SG-33KVA

【产品特点】

Transformer Technical Parameters


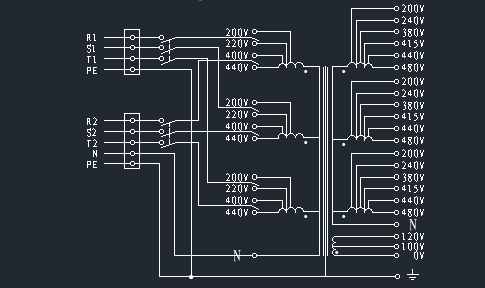

   1.Product Name:Three-phase Isolation Transformer

   2.Product Model:SG-33KVA

   3.Primary Voltage:3p200V 220V 400V 440V

   4.Primary Current:95.3A 86.6A 47.6A 43.3A

   5.Secondary Voltage:3p200V 240V 380V 415V 440V 480V

               1P 100V 120V

   6.Secondary Current:86.6A 72.2A 45.6A 41.7A 39.4A 36.1A

               30A 25A

   7.Phase Number:Three phase

   8.Capacity:33kVA

   9.Frequency:50/60Hz

   10.Insulation Grade:F Class

   11.Withstand Voltage:Primary to Secondary

                        3.0KV/1 minutes

                        Primary to Ground

                        3.0KV/1minutes

                        Secondary to Ground

                        2.5KV/1minutes

   12.Insulation Resistance:Primary to Secondary

                             2500V greater than 500MΩ

                             Primary to Ground

                             2500V greater than 500MΩ

                             Secondary to Ground

                             2500V greater than 500MΩ

   13.Induced Voltage:125HZ/880V/1 minutes

   14.Ground Resistance:25A less than 100mΩ

   15.The Way of Cooling:Forced air cooling

   16.Ratio:Less than 3%

   17.No-load Current:Less than 2%

   18.Impedance Voltage:Less than 5%

   19.Loss:Less than 5%

   20.Effectiveness:Great than 95%

   21.Material:The transformer wire with class H 180

                degrees,Orientation is used 45 degrees of 3

                joint new round core.

   22.Boundary Dimension(A*B*C):600*1000*1050(mm)

   23.Weight(about):360(kg)
